Pneumatic Vacuum Elevator

Air-powered, panoramic home lifts with no pit, no shaft and no overhead - installed quickly on your existing floor for new and retro-fit homes.

  • Capacity01 to 03 passengers
  • Speed0.2 m/s
  • ApplicationBungalows, Villas, Cruise Ships, Hotels, Condos
Technical Specs
  • ISO 9001:2015
  • Since 1985
  • 24x7 Support

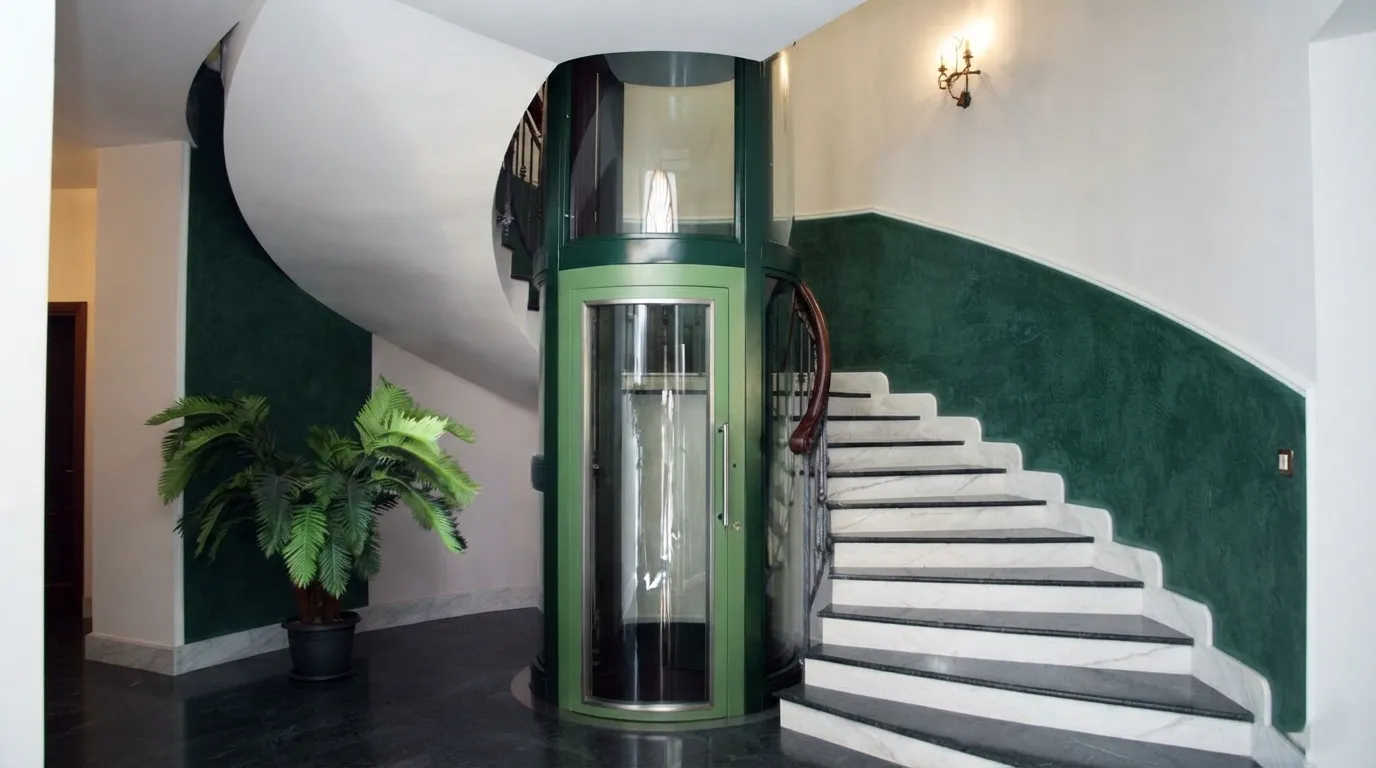

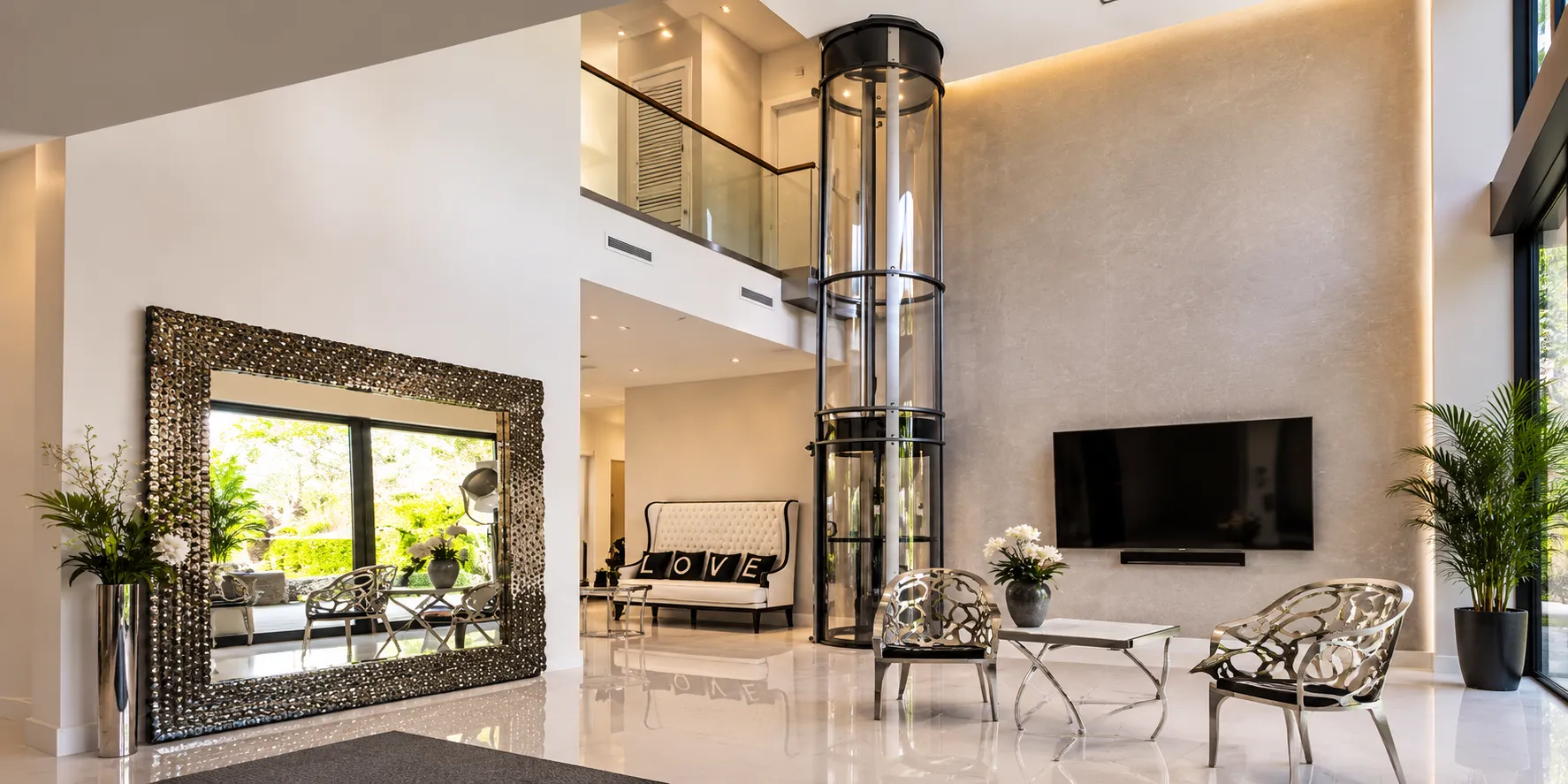

Pneumatic vacuum home elevator in a modern home by Sigma Elevators No pit · No shaft 1 / 3

Overview

Pneumatic Vacuum Elevator Manufacturers

Powered by the most abundant resource in the world - air - pneumatic elevators are innovative, space-saving home lift solutions that have changed the way people and goods move vertically inside their homes.

These self-supporting, panoramic elevators move smoothly between floors while needing far less space, energy and maintenance than traditional elevators. They simply rest on the existing ground floor, making installation easy for both retro-fit and new construction projects.

Pneumatic technology creates areas of higher and lower pressure inside the cylinder hoistway. A fully enclosed car inside the vertical cylinder moves up by air suction and comes down gently by gravity.

No pit, no shaft, no overhead A self-supporting tube on your existing floor - single-phase power, no oiling and a 360° view.

Choose From Three Models

  • Sole · 1 Passenger
  • Dual · 2 Passengers
  • Mobility · Wheelchair

Where Vacuum Elevators Fit

  • Bungalows
  • Villas
  • Cruise Ships
  • Hotels
  • Condos & Penthouses
  • Boutique Showrooms

Why Pneumatic

Advantages of Vacuum Elevators

  • Minimal Footprint

    No pit, shaft or overhead - fits where stairs go.

  • Smooth Operation

    Air suction up, gravity down, for a gentle, quiet ride.

  • Minimal Energy

    Runs on single-phase power with power drawn only going up.

  • Quick Installation

    Self-supporting structure with low construction cost.

  • 360° Visibility

    Panoramic polycarbonate tube that becomes a design feature.

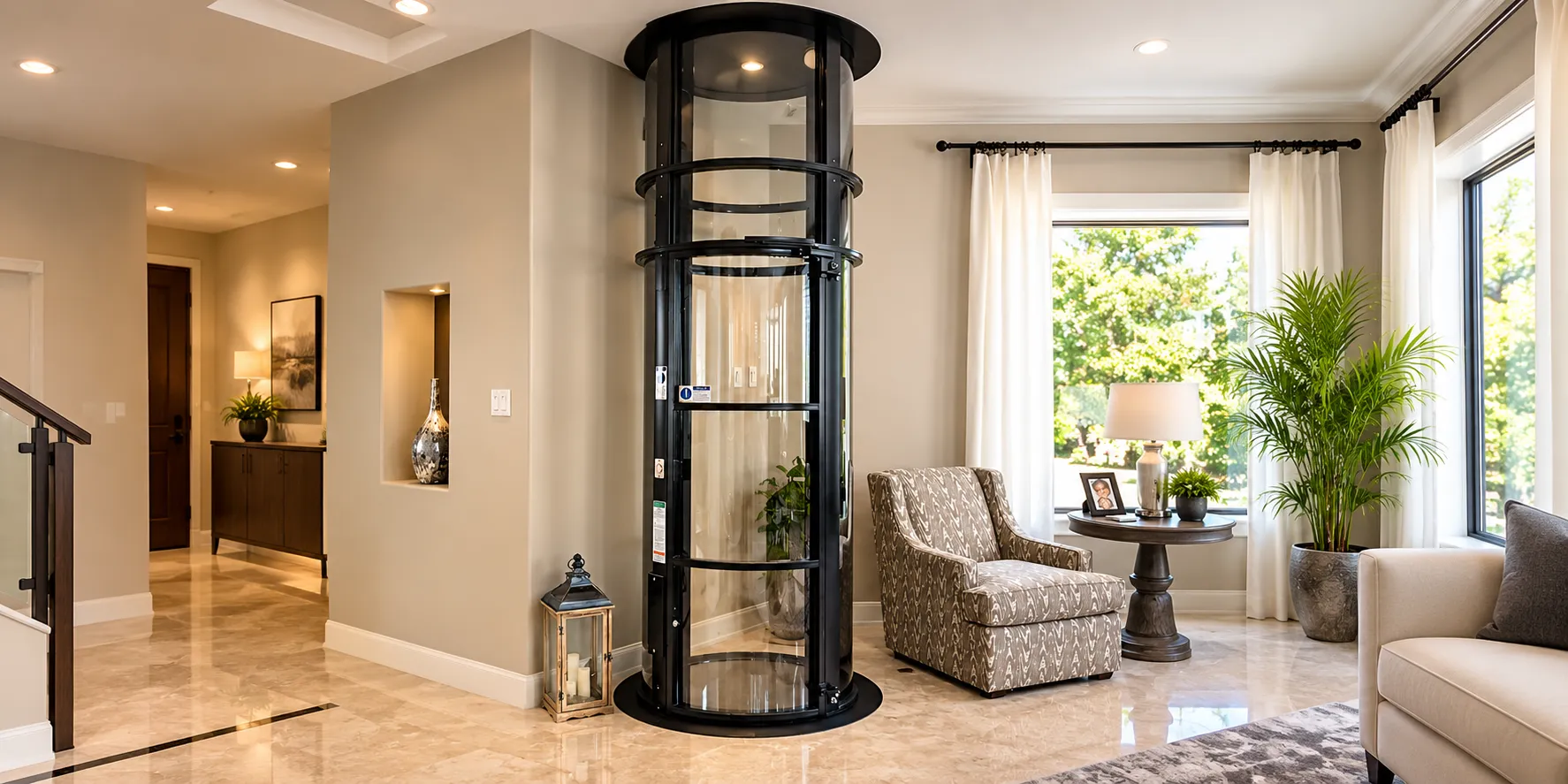

Pneumatic vacuum elevator by Sigma Elevators
0.2metres / second

Highlights

Features at a Glance

  1. No pit, no shaft and no overhead required.
  2. No oiling - air-driven with minimal maintenance.
  3. 360° visibility through a panoramic cylinder.
  4. Minimal energy use on single-phase power.
  5. Minimal footprint and a self-supporting structure.
  6. Quick installation with low construction cost.
  7. Smooth, quiet operation between floors.
  8. Emergency safety system built in.

Dimensions

Technical Specification

Pneumatic vacuum elevator model comparison
Model Sole Home Elevator Dual Home Elevator Mobility – Accessible
Person 1 2 Three Passenger / Wheelchair
Capacity 159 kg 205 kg 238 kg
Speed 30 ft / min 30 ft / min 20 ft / min
Maximum Rise 15 m / 50 ft 15 m / 50 ft 15 m / 50 ft
External Cylinder Diameter 30 in (750 mm) 37 in (950 mm) 52 11/16 in (1338 mm)
External Cylinder Aluminium frame and polycarbonate panels
Elevator Car Made of steel, housing the brake and safety mechanisms, with the proprietary seal located on top of the car
Car Enclosure Automatic interior LED lighting and fan
Door Opening 20½ in 21 in (534 mm) 32 in (813 mm)
Power Supply 25 AMP 220VAC 30 AMP 220VAC 35 AMP 220VAC

This is general data and may change without notice. Pneumatic vacuum elevators need no pit, shaft or machine room - only a level floor and a single-phase power supply.

FAQ

Frequently Asked Questions

Still have a question about vacuum elevators? Our team is one call away.

Call an Expert

What is a pneumatic vacuum elevator?

A pneumatic vacuum elevator moves the cabin using air pressure inside a sealed tube. It needs no pit, no machine room and no cables, installs quickly, and offers a panoramic 360 degree view - ideal for homes.
