Geared Elevator Machine

Capacity

04 to 20 passengers

Application

Bungalows, Commercial Offices or any Potential Building to Install Elevators.

Speed

0.65 to 1.5 mt/ps

Geared Traction Elevators are the most economical and globally accepted amongst all elevators solutions. Sigma amalgamates Convenience and comfort to enhance the vertical transition of a passenger or materials. An omnipresent solution where the availability of spares and remodernization of old elevators become effortless.

High speed fully automatic elevators system provide defined luxury and aristocracy with to building premises. Manual elevators system are most recognised and traditionally reliable amongst the consumers.

Features at a glance

  • Geared Traction is the most prominent combination of versatility, flexibility and performance for any high and medium-rise buildings.
  • Geared Traction System comprises of two main segments: gearbox and electric motor.
  • Manual and Automatic Door System comprises of car switch operation by an attendant or luminous operating panels.
  • Geared traction machines are ideally placed top in the machine room or bottom in hoistway.

Technical Specification

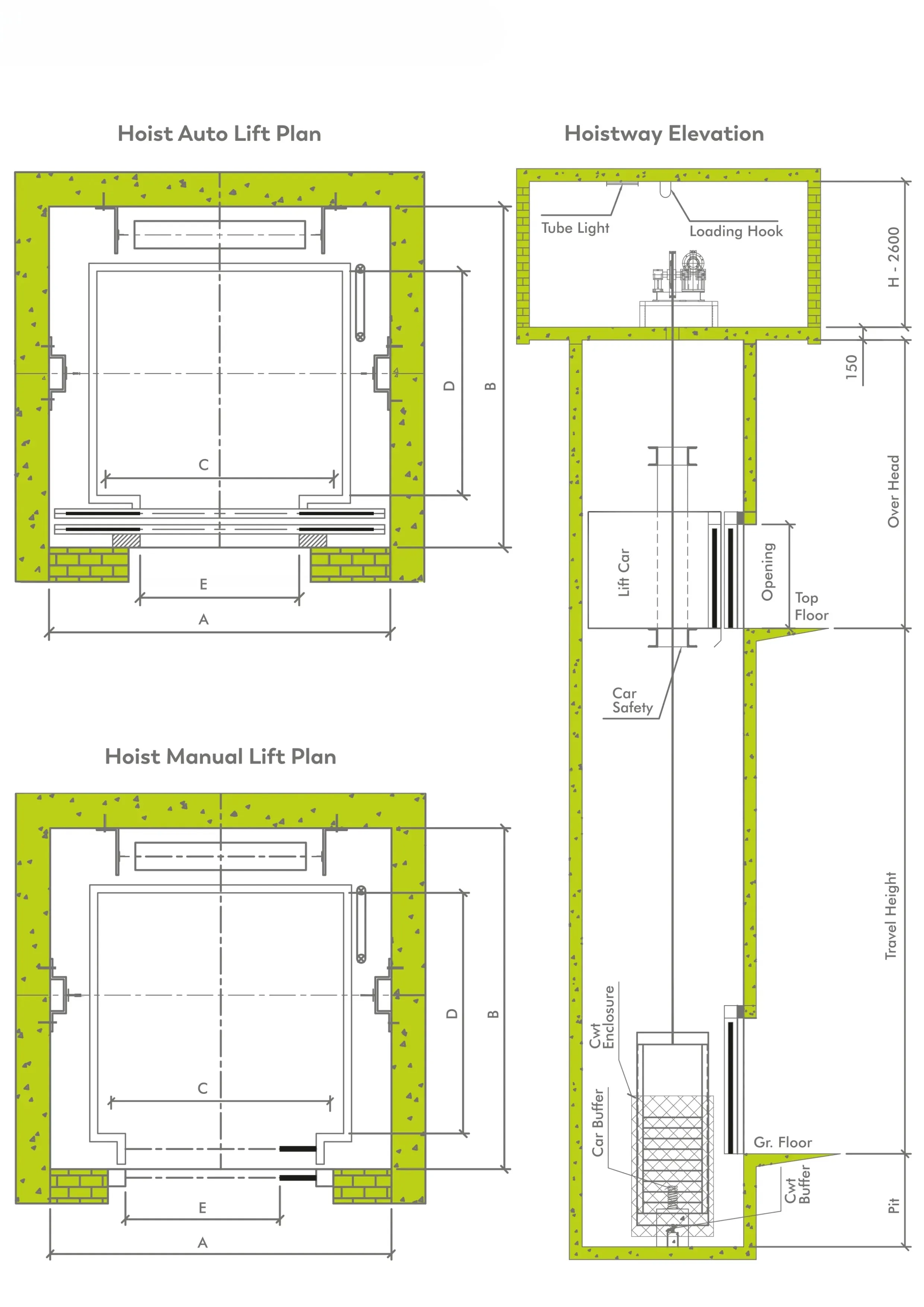

Auto Plan

LOAD SHAFT SIZE CAR SIZE ENTRANCE MACHINE ROOM
WIDTH DEPTH WIDTH DEPTH WIDTH DEPTH HEIGHT
PERSON KGS A B C D E F G H
5 340 1900 1300 1100 700 700 3000 3500 2600
6 408 1900 1700 1100 1000 800 3000 3500 2600
8 544 1900 1900 1300 1100 800 3200 3500 2600
10 680 1900 2100 1300 1350 800 3500 4000 2600
13 884 2500 1900 2000 1100 900 4000 4200 2600
16 1088 2500 2100 2000 1300 1000 4500 4800 2600
20 1360 2500 2400 2000 1500 1000 5000 5000 2600
26 1768 2500 2900 2500 1500 1200 5000 5000 2600

Manual Plan

LOAD SHAFT SIZE CAR SIZE ENTRANCE MACHINE ROOM
WIDTH DEPTH WIDTH DEPTH WIDTH DEPTH HEIGHT
PERSON KGS A B C D E F G H
4 272 1600 1300 1100 700 700 3000 3000 2600
5 340 1600 1300 1100 850 700 3000 3200 2600
6 408 1670 1370 1100 1000 700 3000 3500 2600
8 544 1800 1600 1300 1100 800 3200 3500 2600
10 680 1850 1800 1300 1300 800 3500 4000 2600
13 884 2500 1600 2000 1100 900 4000 4200 2600
16 1088 2500 1800 2000 1300 1000 4500 4800 2600
20 1360 2500 2050 2000 1550 1000 5000 5000 2600

All dimensions are in mm. This is general data, it may be changed without notice. All hoist way walls should be minimum 230 mm brick or 150 mm rcc. Pit Depth 1 600 mm and Overhead Height 5000 mm upto 1 .5 mps. Pit Depth 2600 mm and Overhead Height 6700 mm upto 2.5 mps
