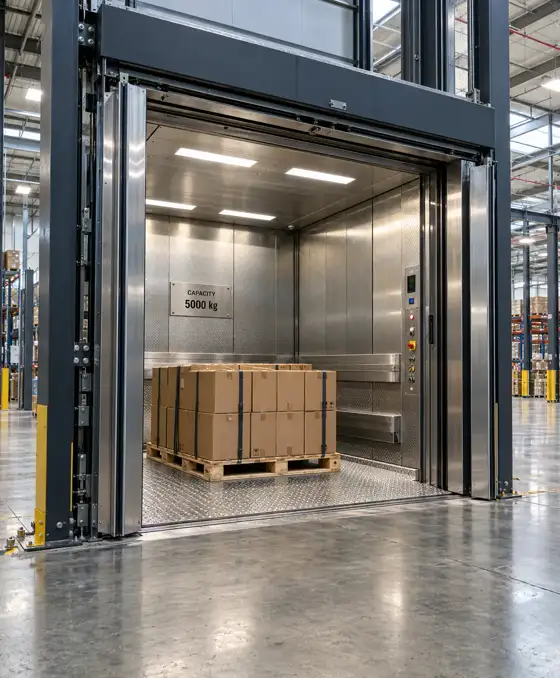

Goods Freight Elevator Manufacturers
Capacity
500 to 15000 kgs.
Application
Manufacturing Units, Trading Units, Import and Export Houses, Warehouses, Under Construction Buildings.
Speed
0.25 to 1.00 mt/ps
Sigma’s intelligence applied for the transition of bulky and heavy goods rapidly and effortlessly with dominant engineering, reinforced mechanical structure. Modern freight elevators are reliable, firm and durable with great precision level for optimizing production process thereby boosting earning power. Maximum space utilization saves building area reducing construction cost.
CONSTRUCTION HOIST AND ELEVATOR
GOODS CUM PASSENGER ELEVATOR
OPPOSITE SIDE OPENING ELEVATOR
Features at a glance
- Sturdy cabins with the rugged firm interior finish to prevent damage during loading-unloading with auto levelling accuracy for smooth operation.
- Manually operated door such as collapsible gates, double swing door, multi-panel cabin doors, with wide width up to 4 meters or automatic doors can be affixed .
- Delicate, fragile and overabundance goods can be managed easily .
- Goods Cum passenger elevators for human transition with materials .
- Hydraulic Elevators even up to 25 tonnes are feasible, though electric freight elevators are energy-efficient .
- Indoor or outdoor models with fireproof, dustproof, birdproof alternatives.
- Hydraulic elevators even up to 25 tonnes are feasible, though electric freight elevators are energy-efficient for freight lifting

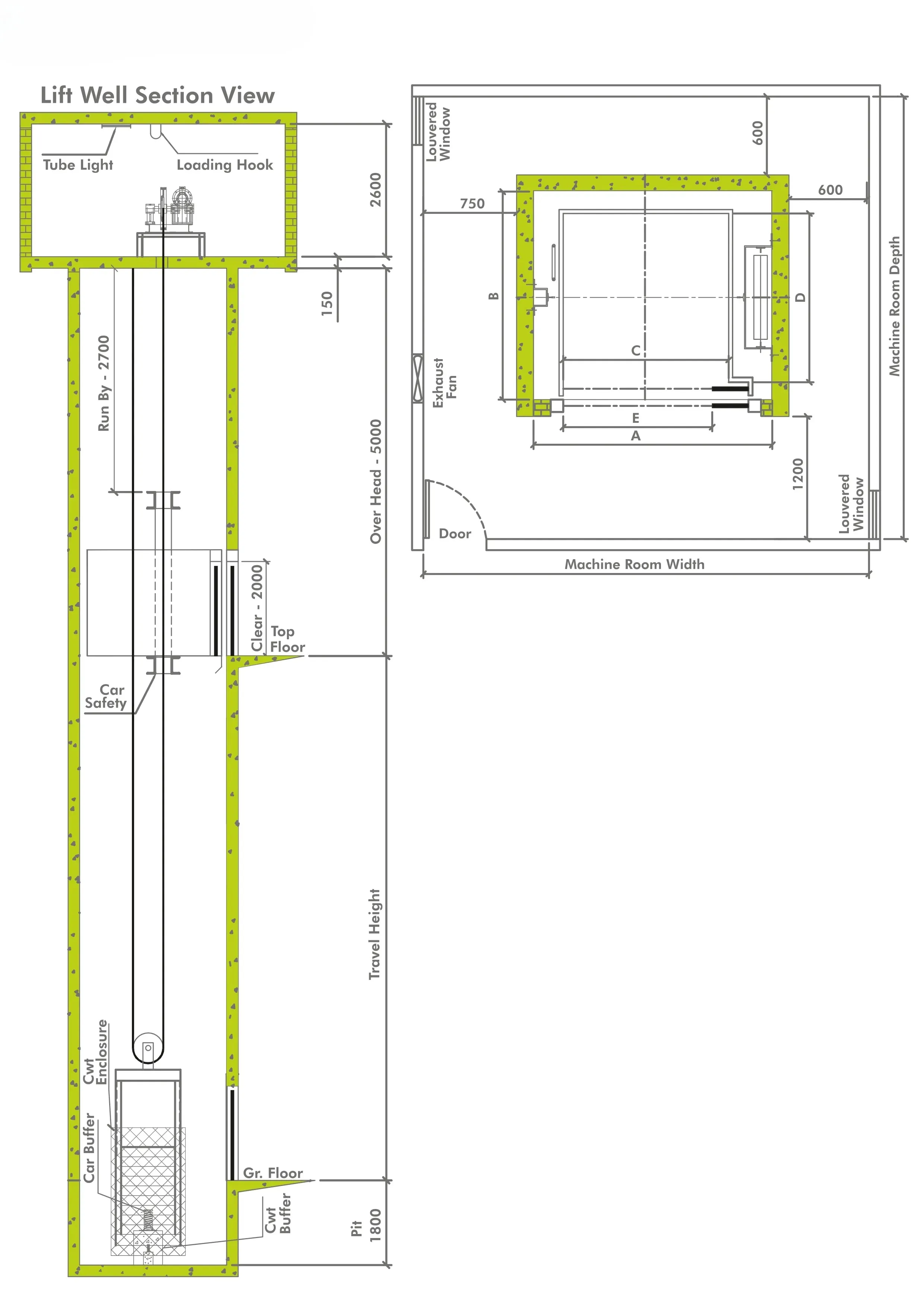

Technical Specification
| LOAD | ENTRANCE | SPEED MPS | PIT | OVERHEAD | ||||
|---|---|---|---|---|---|---|---|---|
| KGS. | SHAFT - W | SHAFT - D | CAR - W | CAR - D | ||||
| A | B | C | D | E | G | H | I | |
| 500 | 1900 | 1500 | 1100 | 1200 | 1100 | 0.25 to 1.00 | 1800 | 5000 |
| 1000 | 2300 | 2100 | 1400 | 1800 | 1400 | |||
| 1500 | 2600 | 2300 | 1700 | 2000 | 1700 | |||
| 2000 | 2600 | 2800 | 1700 | 2500 | 1700 | |||
| 2500 | 2900 | 2800 | 2000 | 2500 | 2000 | |||
| 3000 | 2900 | 3300 | 2000 | 3000 | 2000 | |||
| 4000 | 3400 | 3300 | 2500 | 3000 | 2500 | 0.25 | 2200 | 6500 |
| 5000 | 3400 | 3900 | 2500 | 3600 | 2500 | |||
All dimensions are in mm. This is general data, it may be changed without notice. All hoist way walls should be minimum 230 mm brick or 150 mm rcc.
