Dumbwaiter Elevator Manufacturers
Capacity
Application
Speed
Dumbwaiters are small freight elevators intended to carry lightweight objects. Our clients can avail from us a comprehensive range of Dumb Waiters that are designed in compliance with international quality standards.
Sigma's intelligent dumbwaiter is applied in various modern infrastructure either public or private buildings connected with multiple floors for prompt convenient and economical vertical transport. Dumb waiters are customized according to their carrying capacity and objects which saves time and labor resources.

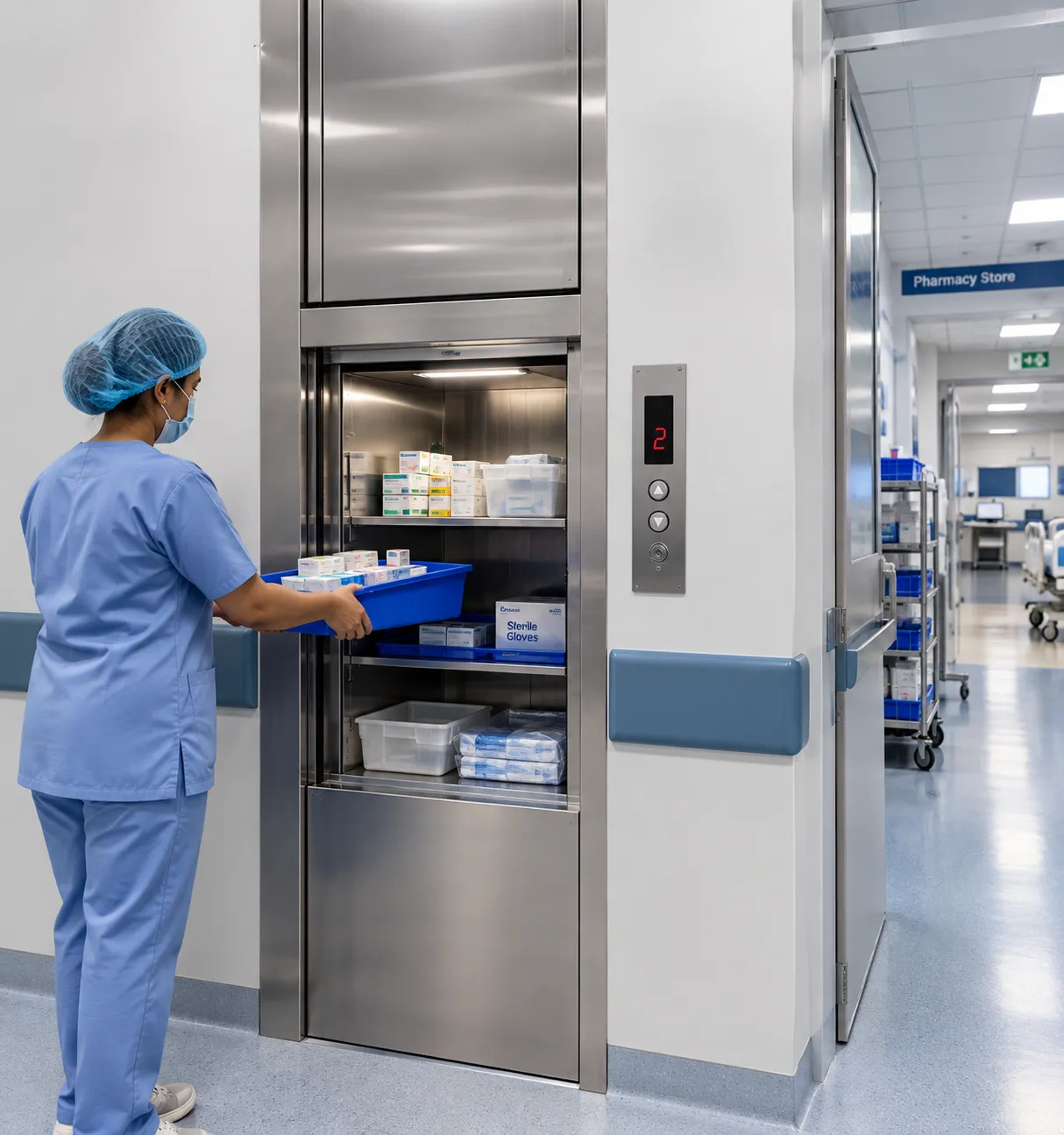

Peculiar hospital dumbwaiter is designed as per WHO norms to transit sterilize and non-sterilise equipment. Sigma specializes in Kitchen dumb waiters, hence used to transfer hot or cold food with special oven's or freezers incorporated to keep the transporting food fresh and hygienic. Nowadays the installation of dumbwaiter at private residence has increased for daily convenience for transacting laundry, foods or small objects
Features at a glance
- Safe, hygienic and convenient operation.
- Installation in less than 15 Days.
- No requirement of machine room.
- Cabin: with/without partitions or compartments.
- Doors: Bi Particle or guillotine or Swing .
- Operation type: Push buttons.
- Window – floor type: Straight up/down.
- Machine: Traction or winding machine.
- Kitchen lift assemble: Freezer and oven.
- Installation in less than 15 days.

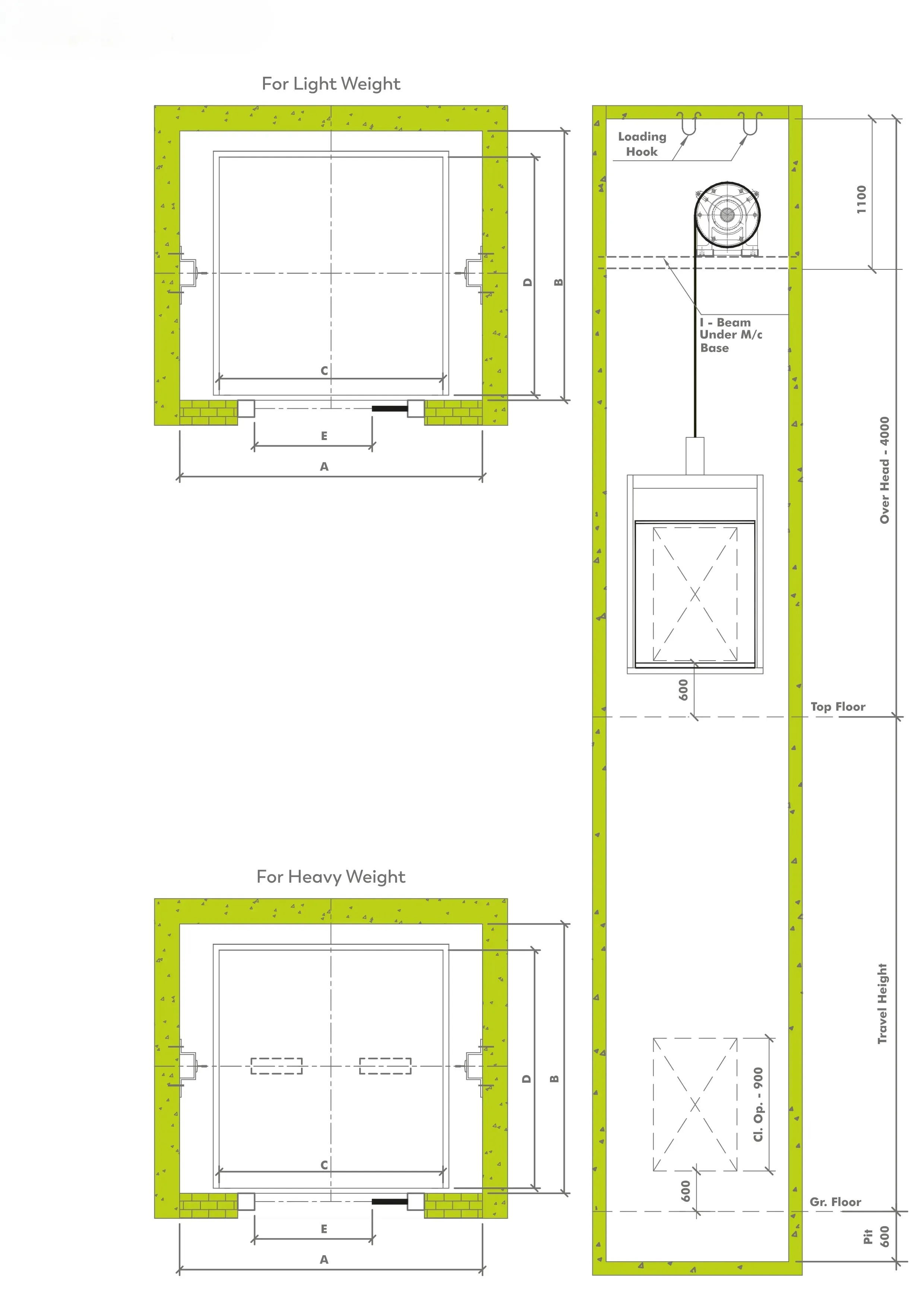

Technical Specification
| LOAD | SHAFT - W | SHAFT - D | CAR - W | CAR - D | ENTRANCE | |
|---|---|---|---|---|---|---|
| KGS. | A | B | C | D | E | HT. |
| 100 | 1200 | 900 | 700 | 700 | 700 | 800 |
| 150 | 1300 | 1000 | 800 | 800 | 800 | 900 |
| 200 | 1400 | 1100 | 900 | 900 | 900 | 1000 |
| 250 | 1500 | 1200 | 1000 | 1000 | 1000 | 1200 |
All dimensions are in mm. This is general data, it may be changed without notice. All hoist way walls should be minimum 230 mm brick or 150 mm rcc. Pit Depth 750 mm and Overhead Height 4400 mm upto 1 .5 mps.
